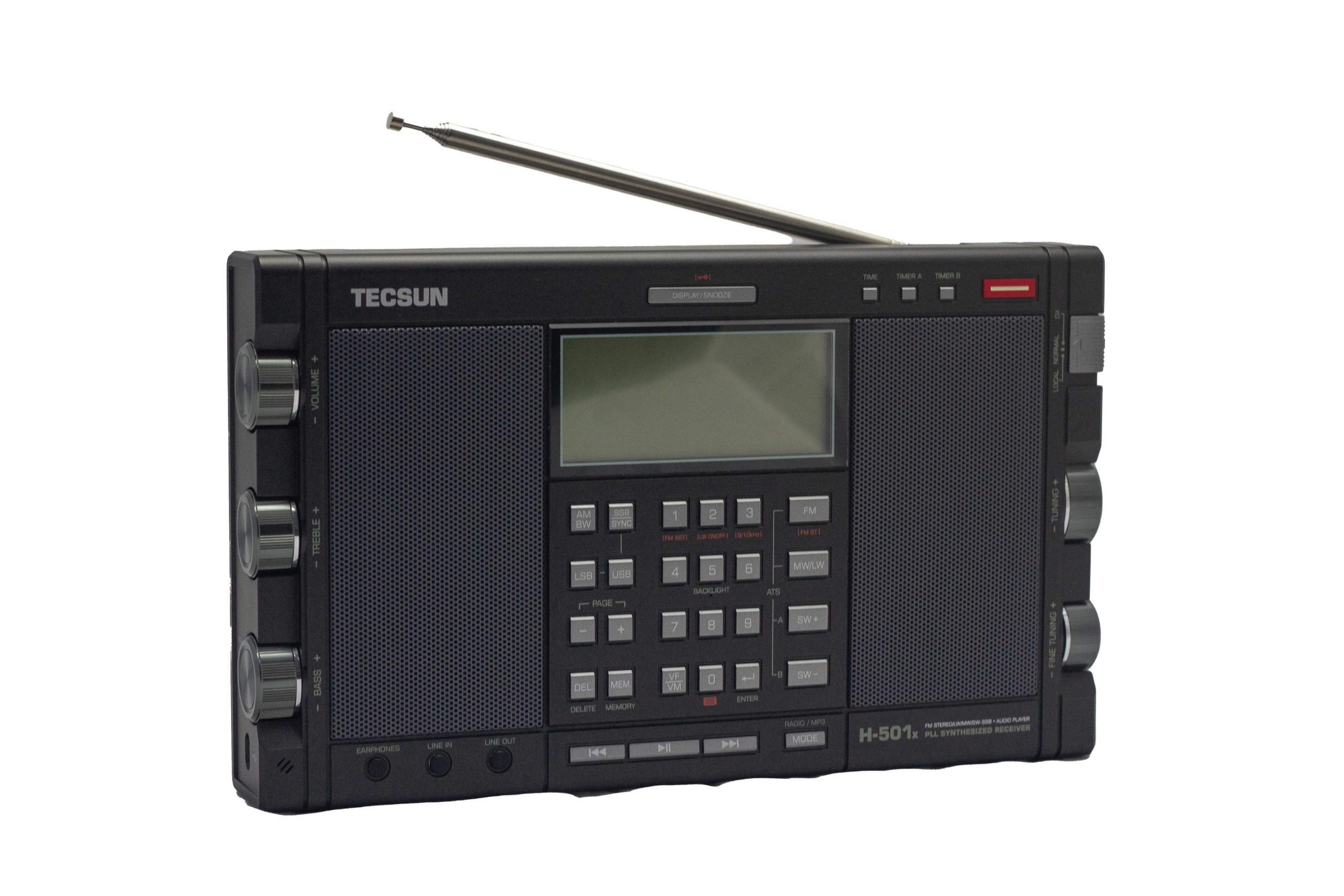

Tecsun H-501x DSP Shortwave Radio

Description

The Tecsun H-501x DSP Shortwave Radio is the newest addition to the Tecsun radio range and is the culmination of years of research and development by Tecsun’s engineering department and feedback from shortwave radio listeners. The Tecsun H-501x Deluxe Shortwave Radio is designed to be a hybrid desktop portable radio that doesn’t compromise on performance for size. Whether you’re looking for your next radio or the perfect gift the Tecsun H-501x Deluxe Shortwave Radio has you covered.

The Tecsun H-501x DSP Shortwave Radio can receive Longwave (LW), Medium Wave (MW or AM) and Shortwave (SW) frequency bands and is Single Side Band (SSB) capable. The Tecsun H-501x Deluxe Shortwave Radio’s large LCD screen makes the Tecsun H-501 easy to use under all light conditions. The Tecsun H-501x Deluxe Shortwave Radio features user selectable bandwidths for both AM and SSB modes ensuring the best possible reception under all conditions. The Tecsun H-501x Deluxe Shortwave Radio features twin speakers for high quality audio reproduction or your favourite station, no matter what band it is on!

Tecsun H-501x DSP Shortwave Radio Features:

• Wideband RF Coverage: Longwave (LW), Medium Wave (MW), Shortwave (SW), FM.
• Direct Frequency Entry from Keypad
• Large LCD display
• SSB capable – Upper Side Band (USB) & Lower Side Band (LSB) with BFO Control
• Uses multiple frequency conversion and modern DSP digital demodulation technology, which greatly improves the receiving sensitivity, selectivity and image rejection.
• FM receiving range 64-108MHz, suitable for receiving global FM broadcasting
• Short wave single sideband (SSB) minimum step of 10Hz, independent selection of upper sideband (USB) and lower sideband (LSB)
• Synchronous detection range +/- 1kHz
• Local, medium and DX input selector.
• Independent fast and slow dual tuning structure
• Seven channel selection methods: automatic search and storage (ATS), manual search of pre-stored stations (VM), manual search of station frequency (VF), direct input of frequency numbers, direct input of pre-stored station address numbers, automatic browsing of radio frequencies and automatic viewing of pre-stored stations frequency
• Can store up to 3150 radio frequencies in 25 memory pages
• Can play SD card, supporting 16 bit / 44.1KHz WAV, FLAC, APE, WMA and MP3 format audio files.
• USB sound card function can be used as computer speakers
• Two-channel dual-speaker design, play stereo programs for impressive stereo effect.
• Class AB power amplifier and super dynamic full-range speaker
• Headphone output, suitable for stereo headphones below 300 ohms
• Audio output, for external amplifier or recorder
• With scheduled power-on and sleep auto-off function
• Powered by two 18650 lithium batteries, with separate charging capability.

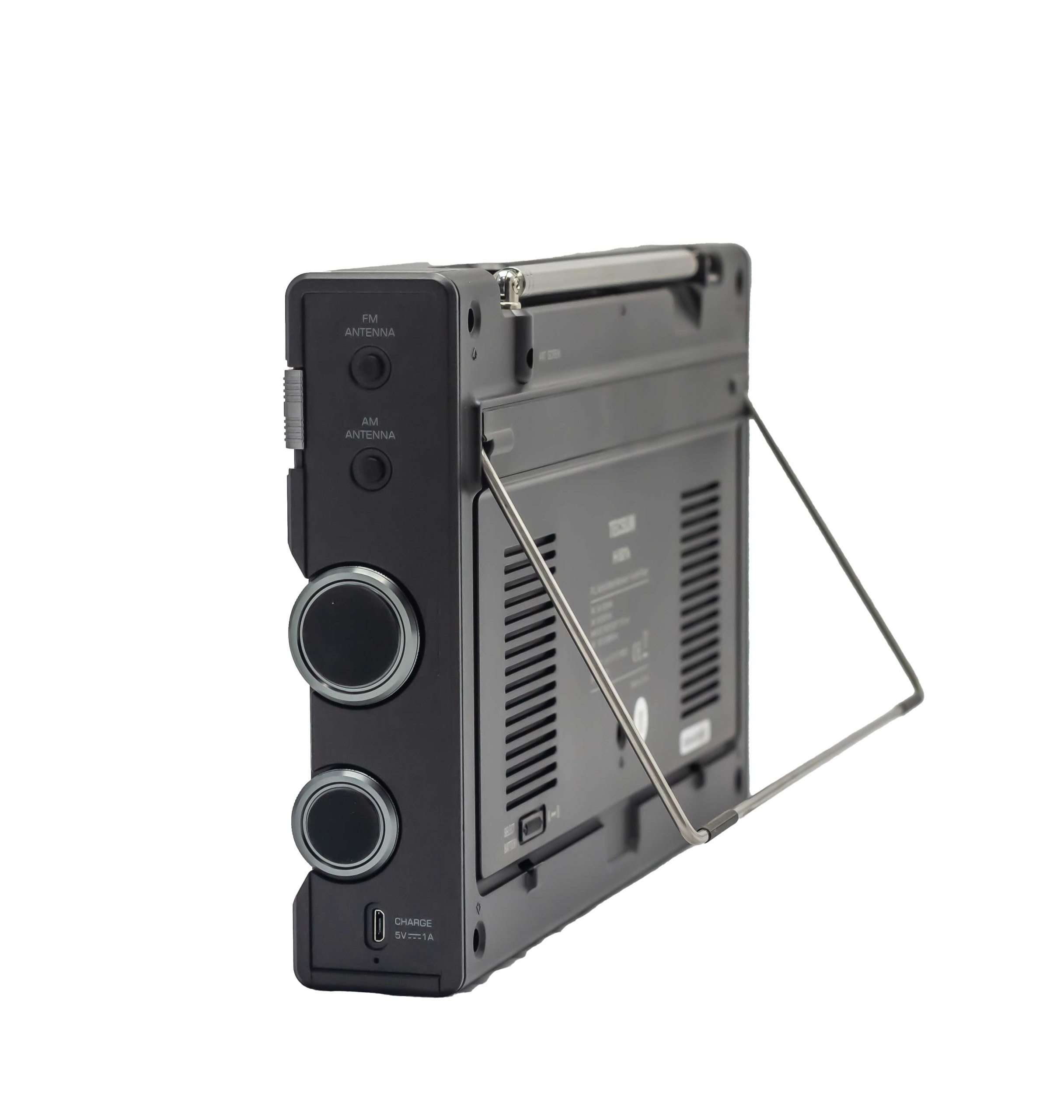

• Robust metal backstand.

Tecsun H-501x Radio Tuning & Frequency Specifications:

• Longwave (LW): 100-519kHz in 9kHz steps, 1kHz fine-tuning steps
• Mediumwave (MW): 520-1710kHz  in 10kHz steps, 1kHz fine-tuning steps, 522-1620kHz in 9kHz steps, 1kHz fine-tuning steps
• Shortwave: 1711-29999kHz 5kHz step, fine-tuning step 1kHz
• FM: 64-108Mhz, 76-108MHz, 87-108MHz, 87.5-108Mhz selectable, FM tuning step 100kHz/10kHz
• Audio format: Supports 16bit / 44.1kHz WAV, FLAC, APE, WMA, and MP3 formats
• Speaker: 6Ω, 3W x 2 speakers
• Power: 3.7V (18650 rechargeable lithium battery x 2)
• Charger Requirements: USB DC 5V, current 1A
• Dimensions:  277 x 167 x 44mm (L x W x H)
• Weight: 1 Kg

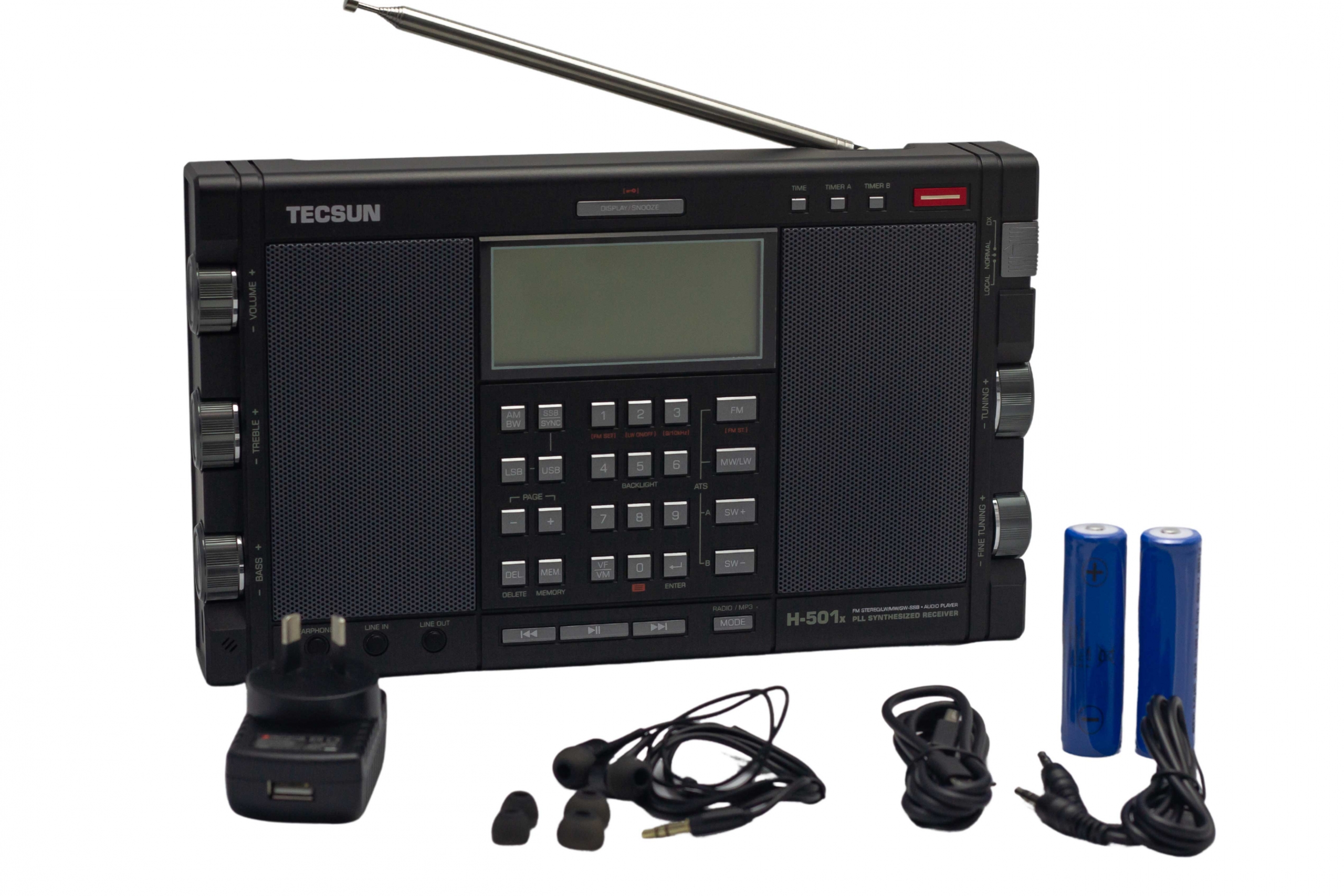

Tecsun H-501x Deluxe Shortwave Radio Package Includes:

• 1 x Tecsun H-501x Full Band Radio

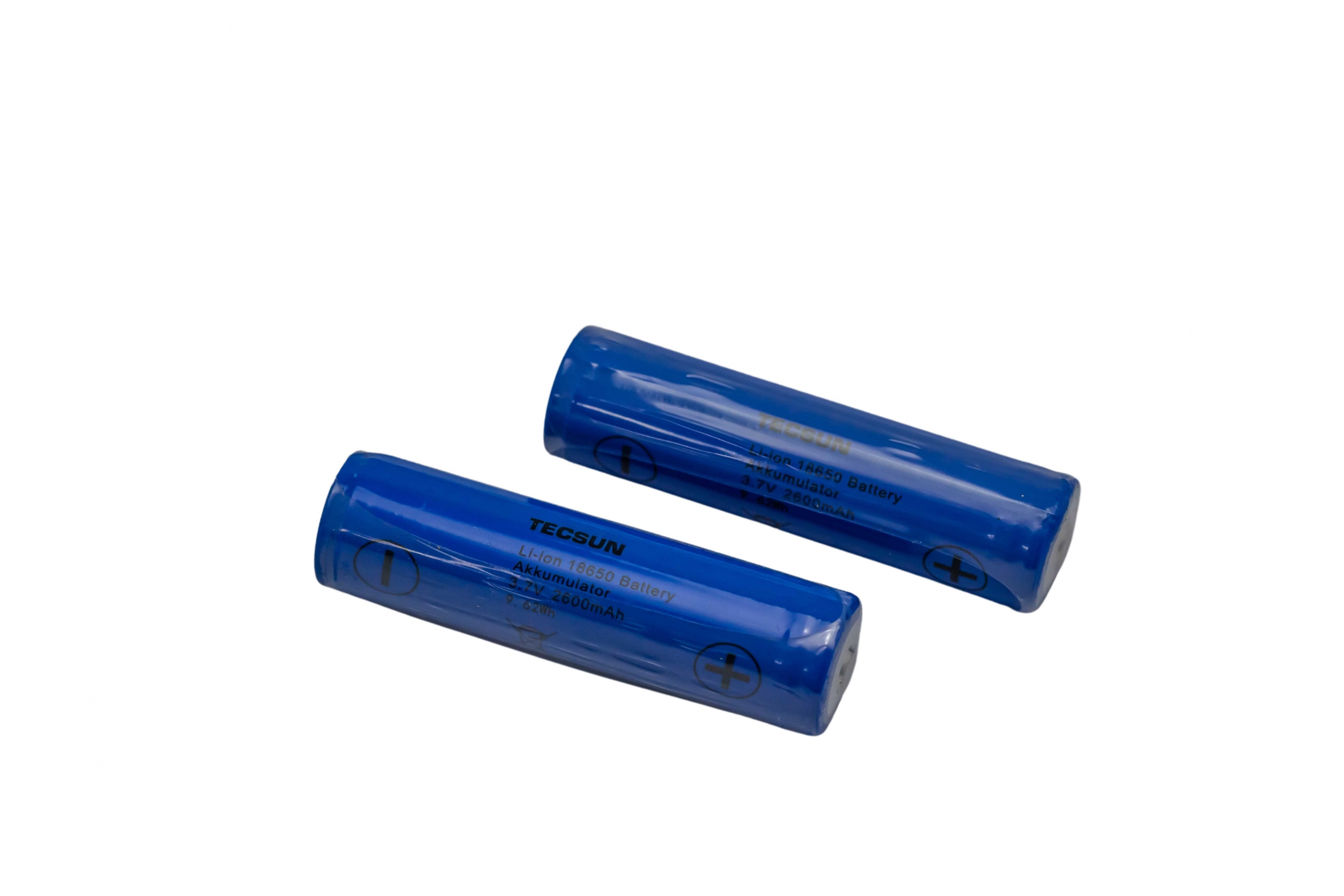

• 2 x 18650 Lithium Battery
• 1 x Hi-Fi Stereo Earphone
• 1 x 16GB Memory Card

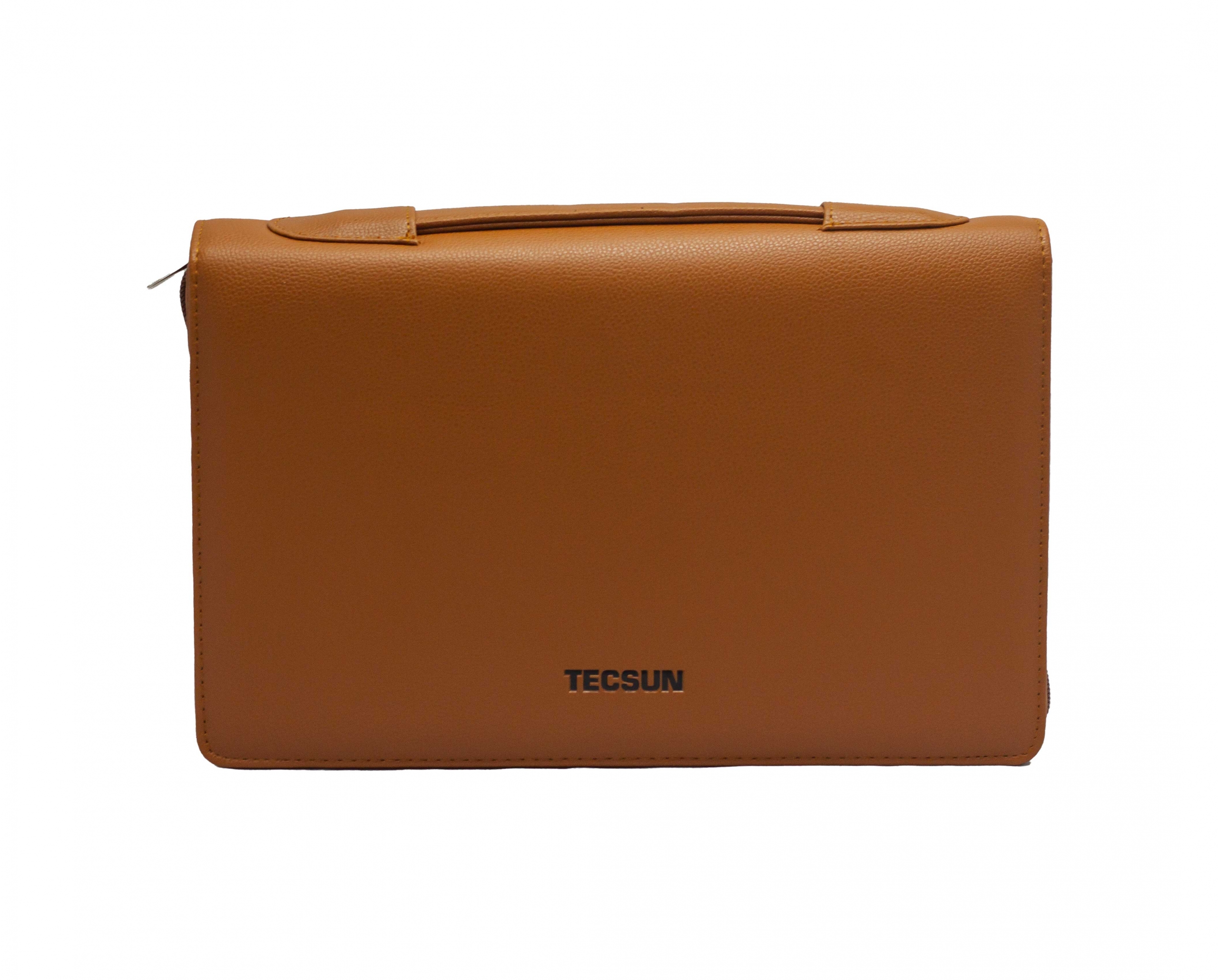

• 1 x Protective  Leatherette Case
• 1 x USB Charging Cable (Micro USB Type B)
• 1 x USB Charger
