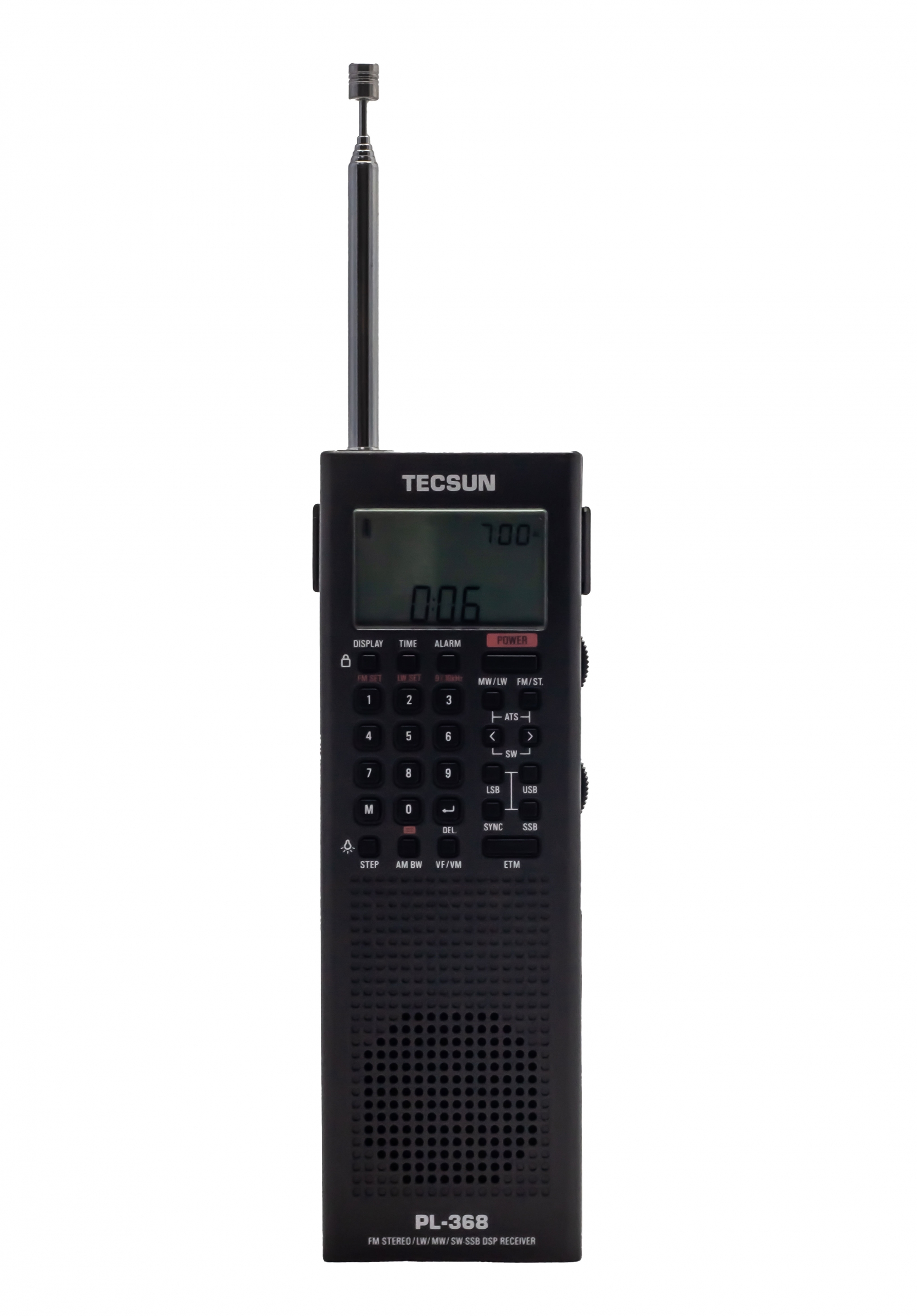

Tecsun PL-368 DSP Hand Held HF SSB Receiver with Synchronous Detection

Description

The Tecsun PL-368 DSP Hand Held HF SSB Receiver is the latest hand held version of the popular PL-360/365 series of receivers.  The form factor of this radio makes it very convenient to store in your grab bag or glovebox. This latest version includes a keypad for direct frequency entry, and a synchronous detector to help overcome fading on shortwave signals. The SSB capability offers 10Hz tuning steps. The external antenna socket operates on MW as well as SW, which is a great advantage for MW Dx’ers. Current stock has firmware version 3684 installed.

Tecsun PL-368 DSP Hand Held HF SSB Receiver Specifications:

• LW: 153-513 kHz, MW: 520-1710/522-1620 kHz, SW: 1711-29999 kHz, FM: 64-108/76-108/787-108/88-108 MHz
• Sensitivity for 26dB S/N: LW 10mV/m, MW: 1mV/m, SW: 20uV, FM (for 30dB S/N) 3uV
• Sync Detection Lock Range: 1 kHz
• DSP IF Frequency: AM 45khz, FM 128kHz
• Frequency Memories: LW;100, MW: 150, SW: 300, FM:100, SSB: 100, Sync: 100.
• FM Stereo Crosstalk: 35dB (headphone output)
• Speaker: 40mm diameter, 16 ohms impedance 0.5W power rating.
• Headphone Impedance: 32 ohms
• Power Supply: 5 V DC USB Micro Type B. Inbuilt BL-5C battery
• Current Drain: FM: 25mA, MW and SW : 45mA. Standby: 90uA
• Dimensions: 162 x 53 x 26mm
• Weight: 130g

Tecsun PL-368 DSP Hand Held HF SSB Receiver Features:

• Direct Frequency entry from keypad
• user Selectable If bandwidth settings for LW/MW, SW and SSB
• ETM+ search function (Time Specific Search)
• ATS search function
• SSB capability with minimum frequency step 10Hz
• 850 memories across all modes

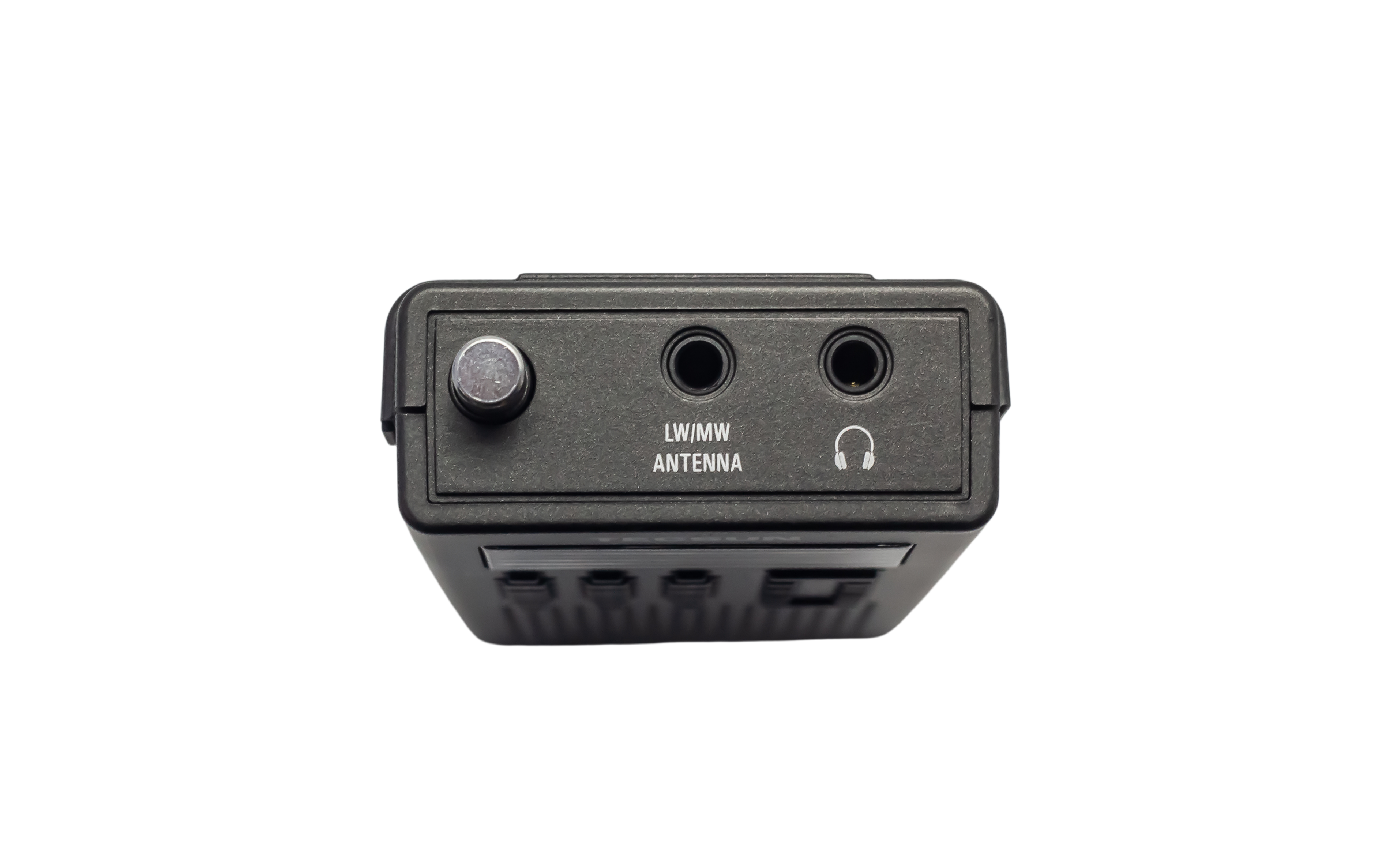

• External Antenna socket for MW and SW
• Multifunctional L:CD Display for: Field Strength, S/N ratio, Temperature, Charge Indicator, Time
• Wideband FM coverage: 64-108mHz
• DSP Demodulation Technology for improved sensitivity, selectivity and S/N.
• Lithium battery powered (BL-5C battery)
• Smart Screen Backlighting.
• Memory Auto Sort deleted duplicate frequencies and arranges memories in low to high frequency order.

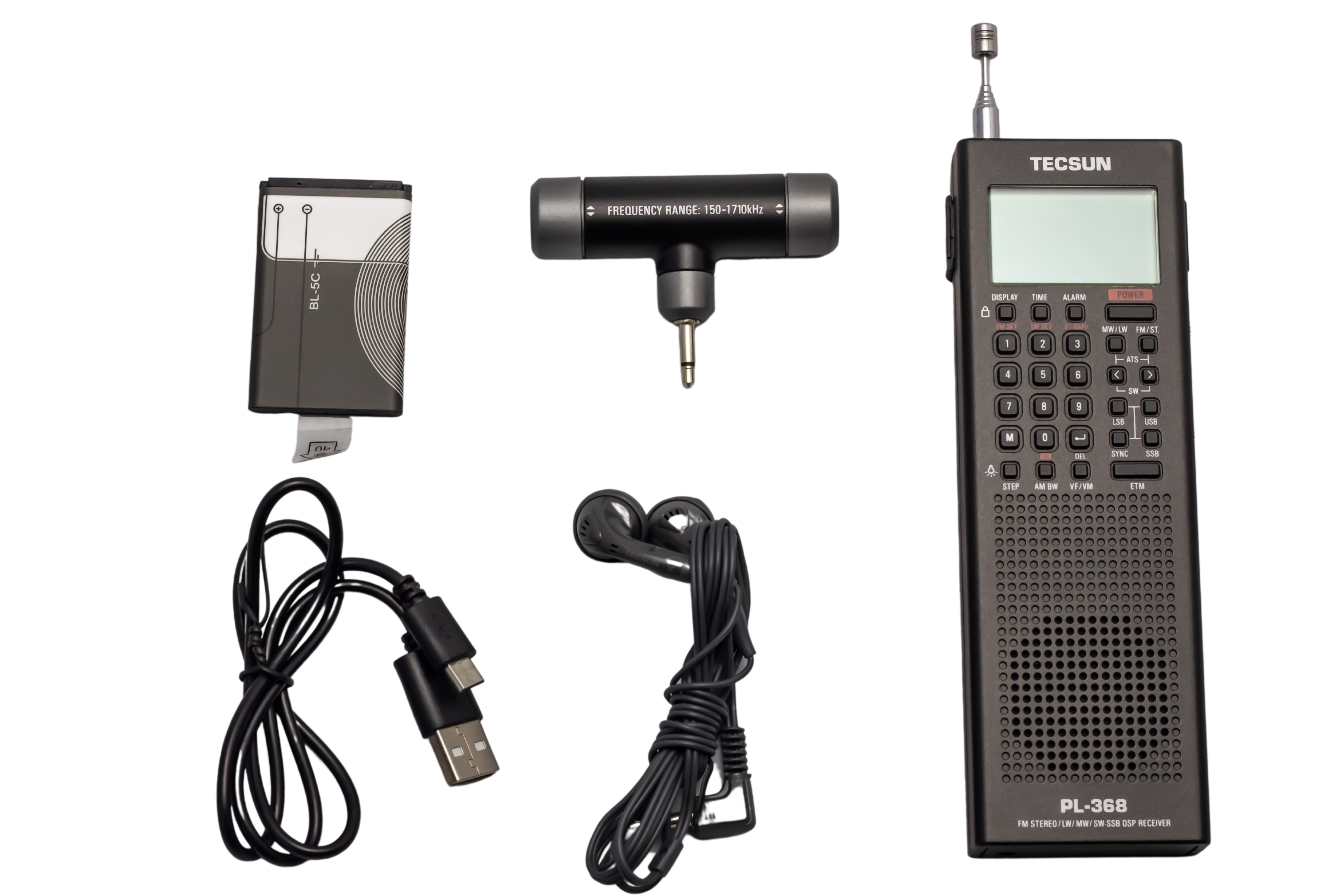

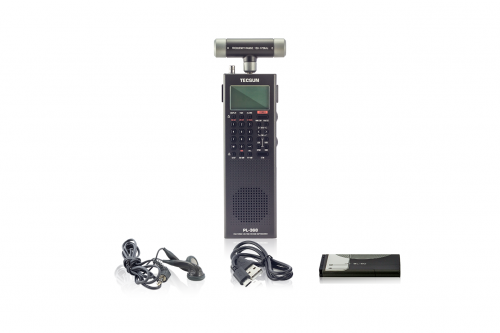

Included Accessories:

Ferrite Rod Antenna

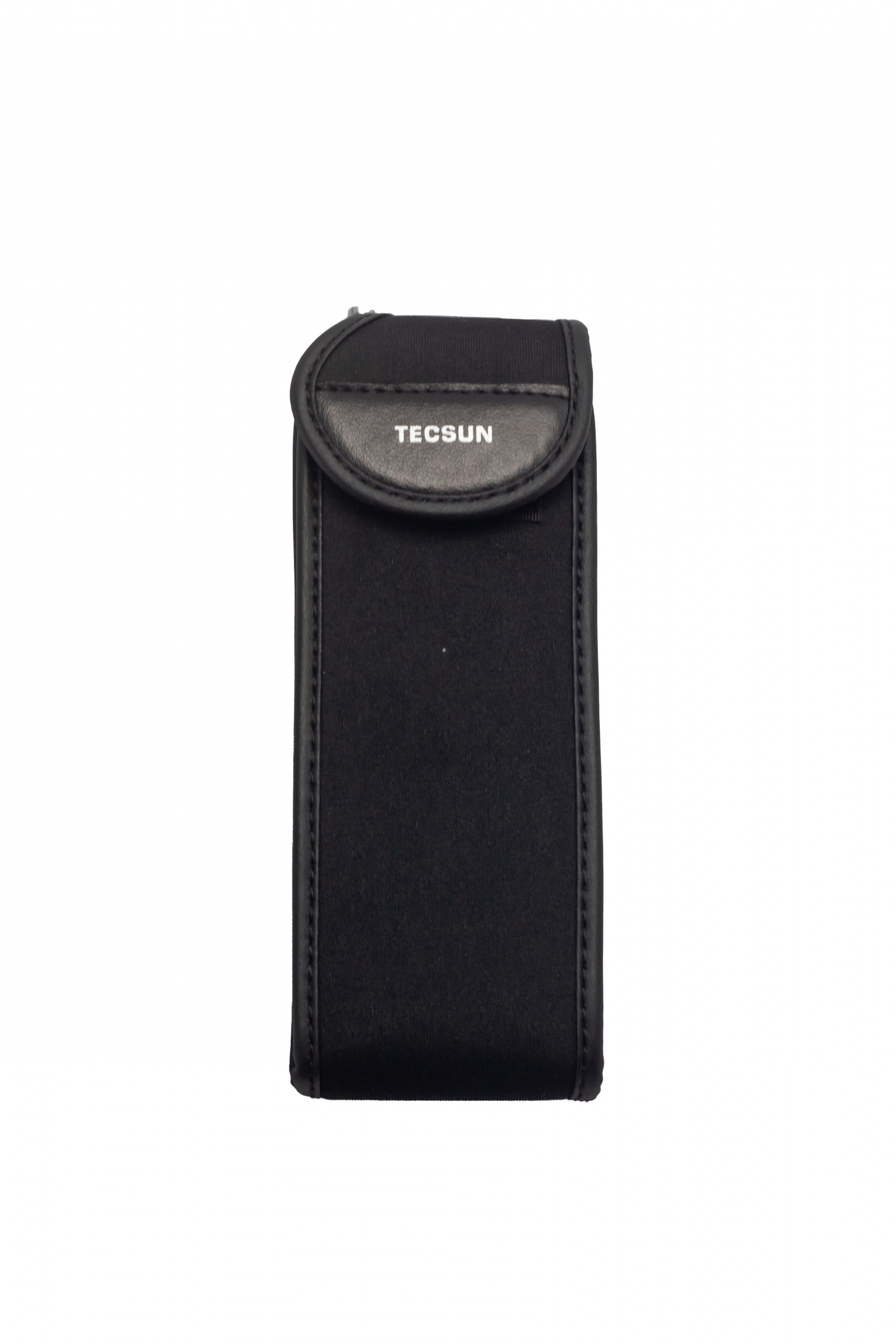

Vinyl Carry case

USB Charging Lead

Earbud

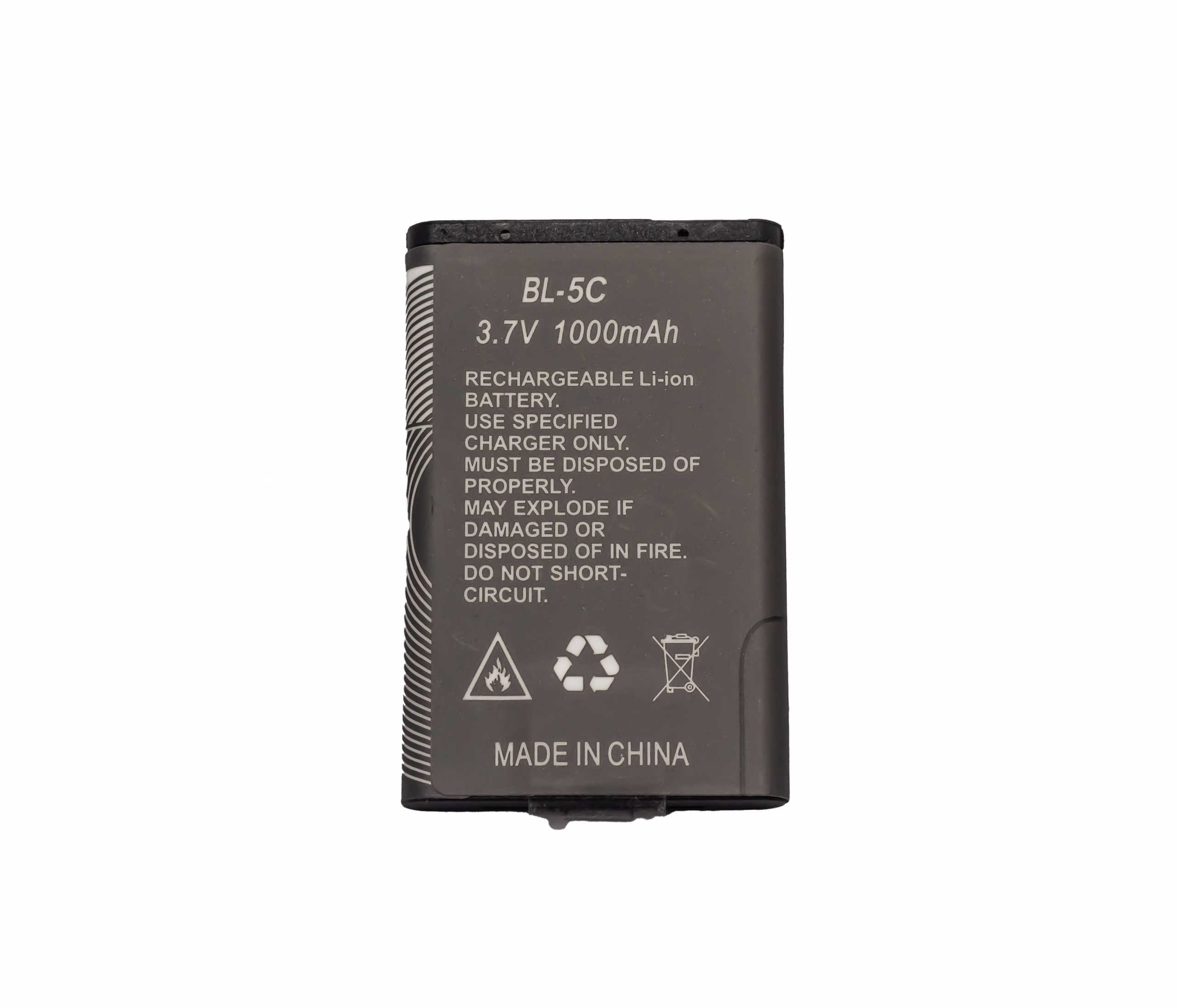

BL-5C Battery

Available in black only and supplied with our standard 12 month warranty.
