Description
DUE AUGUST 2024

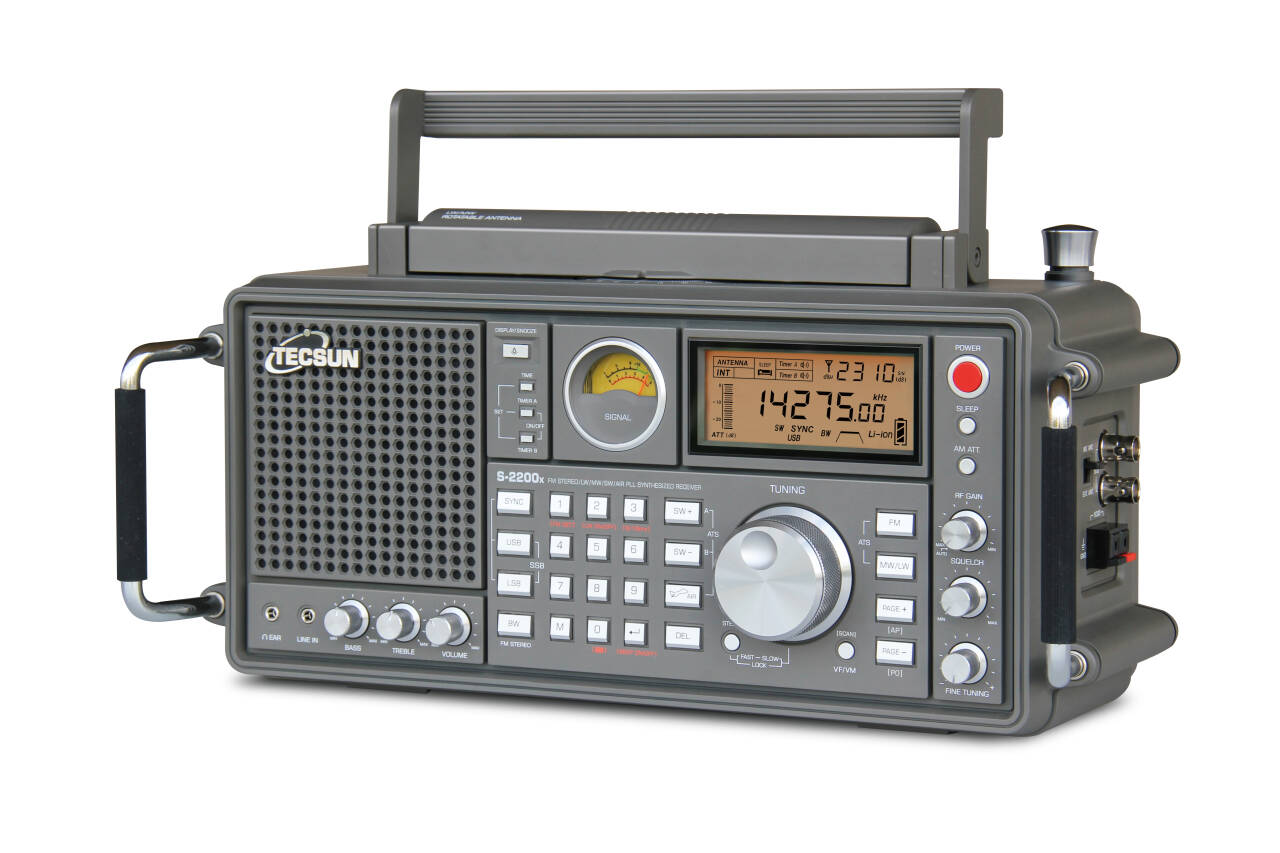

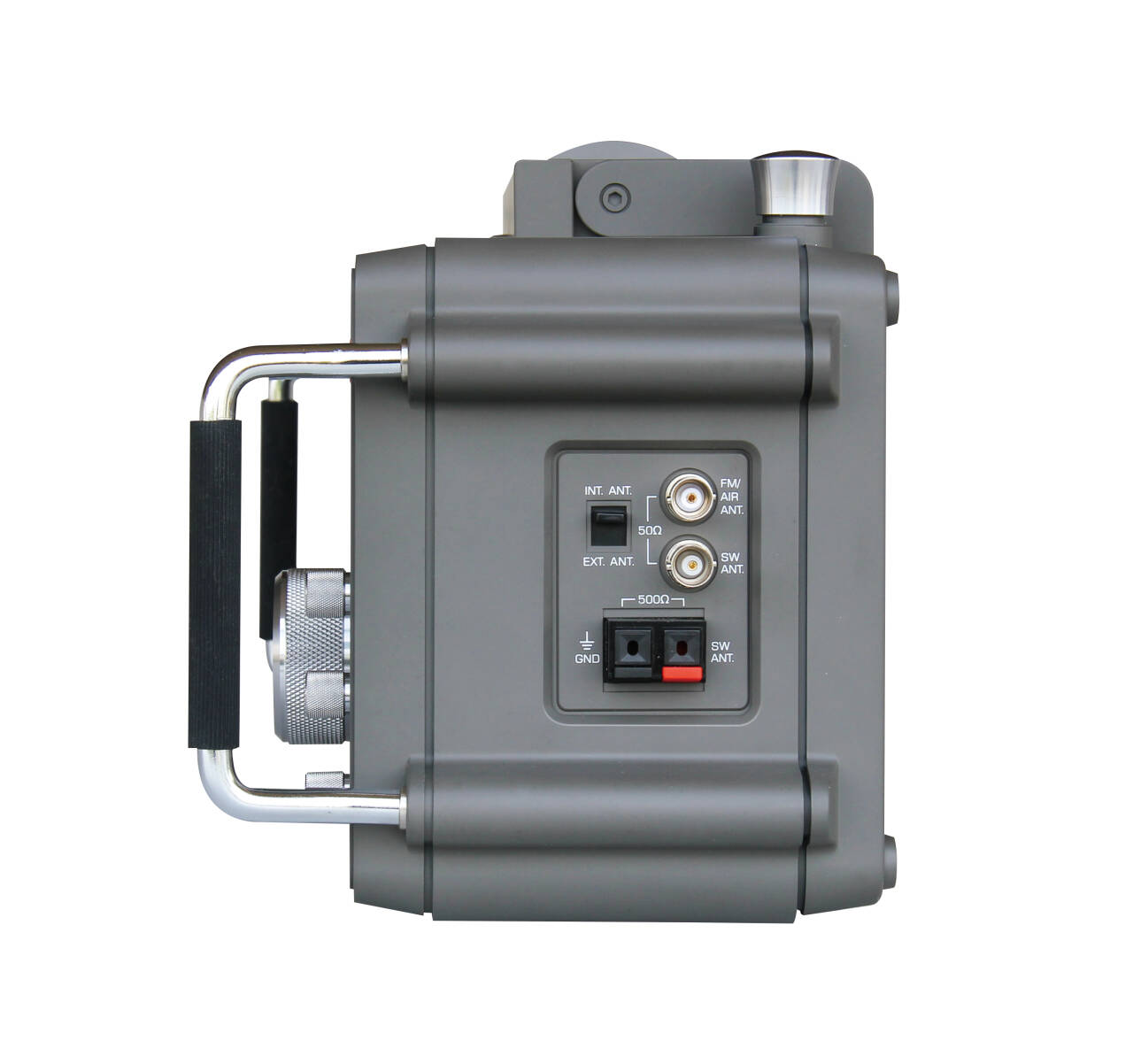

The new Tecsun S2200x receiver carries on the tradition set by the S2000 for the last several decades. Incorporating many new features, this design blends the appearance of traditional tabletop receivers with modern circuitry and performance. The receiver covers the following frequency ranges: 50- 522 kHz, 520-1720 kHz, 1711-29999 kHz, 54-108 Mhz, and 118-137 Mhz. This new receiver utilises analogue high IF circuitry for AM, triple IF conversion and DSP digital demodulation technology to greatly enhance reception sensitivity, selectivity and anti-image interference capability. The receiver has 5 user selectable IF bandwidth filters for LW,MW, SSB, and VHF airband. SSB tuning (LSB or USB) can be incremented in 10Hz steps. Synchronous detection is available on LW,MW and SW. The receiver can facilitate low impedance connection to external antennas for VHF/FM and SW and MW, as well as a high impedance connection for longwire antennas. The receiver operates from 2 x 18650 LiOn batteries or 4 regular D cells. Standby current drain is 100uA. Over 9000 stations can be stored in memory. The receiver also supports clock, two timers, snooze, squelch function, independant fast/slow tuning controls, analogue S meter, facilities for connection to external audio amplifier or recorder.
